ARF10 Telescopic Rod DC 12V Mini Linear Actuator Custom

ARF10 Telescopic Rod DC 12V Mini Linear Actuator

Specifications:

Input voltage: 12VDC

Stroke length:10-150MM

Max. Load:180N

Max.speed:30mm/s

Duty cycle:10%, work 2 minutes and need to rest 18 minutes.

Operational temperature: -26℃ to 65℃

Build-in integral limit switch, not adjustable after leaving the factory.

Low noise design, dB≦50

IP54

Certificates: CE & RoHS

The ARF10 telescopic rod DC 12V mini linear actuator is an electric mechanical device widely used in various automation and control systems. When the DC motor is powered on, it drives the screw to rotate through the gearbox, and the rotational motion of the screw is converted into linear motion through the nut, thereby pushing or pulling the actuator rod. Limit switches are used to control the travel range and avoid mechanical damage caused by excessive travel. The telescopic rod DC 12V mini linear actuator adopts a mini design, making it suitable for space limited application scenarios. Its structure is simple, installation is convenient, and maintenance costs are low. It achieves precise motion control through pulse width modulation, with built-in limit switches and overload protection mechanisms to ensure the safety of equipment operation.

Product Details

Stroke

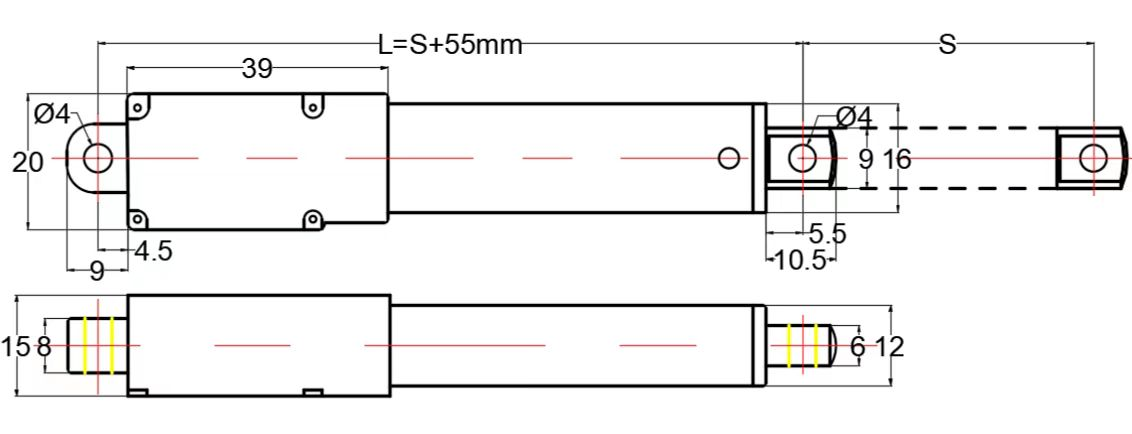

Install size

Load

Speed

10mm

65mm

180N

5mm/s

20mm

75mm

90N

9.5mm/s

30mm

85mm

60N

15mm/s

50mm

105mm

30N

30mm/s

75mm

145mm





100mm

170mm





150mm

220mm



Message us

About Us
Ningbo Alpha Automation Co., Ltd.
Ningbo Alpha Automation Co., Ltd. is an integrated China ARF10 Telescopic Rod DC 12V Mini Linear Actuator Factory and Custom ARF10 Telescopic Rod DC 12V Mini Linear Actuator Suppliers that specializes in the research, production, and marketing of Linear actuators, Control Systems, hand controllers, and wireless remote control TV lift sets.
Our company allocated a professional automatic production assembly line, consummate examine equipment and an experienced R&D team. Our products find good sales all over the world and won the trust and high opinion of our customers deeply, they are widely used in industry, office automation systems, dental chairs, massage chairs, medical beds, electric sofas, and many other fields.
Alpha strictly enforces the scientific production process and, a complete and advanced management system. For the increasing requirements from the world market, we continually expand our production, and business range and devote COMPREHENSIVE SOLUTION for you.
With expertise, a good quality system, competitive price, and reliable service, we could offer you a firm production base for your developing new market. We welcome all circles to review instruct and establish resplendence ardently. We are enthusiastically expecting to trade with you, develop mutual business, and create a wonderful future.
News
Message Feedback
Industry knowledge

Introduction to Mini Linear Actuators

Mini linear actuators are compact, electromechanical devices designed to convert rotary motion into linear motion with precision and control. Unlike larger linear actuators, which are often used in heavy-duty industrial applications, mini linear actuators are tailored for smaller-scale tasks where space, weight, and precision are critical factors. Mini linear actuators typically feature a compact housing that houses an electric motor, gearing system, and a telescopic rod or screw mechanism. The choice between rod and screw mechanisms depends on the application's requirements for speed, force, and precise linear movement. Actuators like the ARF10 Telescopic Rod DC 12V Mini Linear Actuator utilize a telescopic rod mechanism. This mechanism extends and retracts linearly when the motor rotates, offering a straightforward approach to achieving linear motion. Alternatively, actuators with screw mechanisms convert rotary motion into linear movement via a threaded screw and nut assembly. This design provides higher precision and holding force but may require more space. Mini linear actuators find applications across diverse industries: Robotics: Used in robotic arms and grippers for precise movement and manipulation tasks. Automotive: Deployed in automated seating adjustments, trunk or tailgate opening mechanisms, and automated headlight adjustments. Medical Devices: Vital for positioning components in medical instruments, such as surgical robots and patient beds. Home Automation: Integrated into smart home devices for automated window openers, adjustable furniture, and motorized blinds. Mini linear actuators offer several advantages over traditional hydraulic or pneumatic actuators: Their small footprint allows integration into confined spaces, making them suitable for applications where size is a constraint. Capable of precise linear movement and positioning, enabling fine adjustments in applications requiring accuracy. Electrically powered, they operate more quietly than pneumatic or hydraulic actuators, making them ideal for indoor applications.

Applications in Automation

a)Precision Robotics: Mini linear actuators play a pivotal role in robotics, where precision and compactness are crucial. They are employed in robotic arms and grippers to achieve accurate movements required for assembly lines, precision manufacturing, and delicate tasks such as handling electronic components or medical instruments. Their ability to deliver controlled linear motion ensures robots can perform tasks with high repeatability and efficiency.
b)Automotive Adjustments: In the automotive industry, mini linear actuators are integral to automated systems that require precise positioning and movement. They are used in applications such as automated seating adjustments, where they enable customizable seating positions for driver and passenger comfort. Actuators also control trunk or tailgate opening mechanisms and facilitate automated headlight adjustments, enhancing convenience and safety in vehicles.
c)Medical Devices and Healthcare: In medical devices, mini linear actuators contribute to advancements in healthcare technology by enabling precise movement and positioning of critical components. They are utilized in surgical robots for tasks such as positioning surgical instruments with millimeter precision during minimally invasive procedures. Actuators also play a role in adjustable hospital beds and patient lifts, enhancing patient care by providing ergonomic and comfortable positioning solutions.
d)Home and Industrial Automation: In home automation, mini linear actuators are employed in various applications to enhance convenience and efficiency. They are integrated into smart home systems for automated window openers, motorized blinds, and adjustable furniture. These actuators enable users to control their environment remotely, improving energy efficiency and comfort. In industrial automation, they contribute to automated machinery and equipment where precise linear movement is required, such as in packaging, assembly lines, and material handling systems.
e)Consumer Electronics and Gadgets: Mini linear actuators are increasingly integrated into consumer electronics and gadgets to improve functionality and user experience. They are used in devices such as adjustable laptop stands, smart mirrors with adjustable angles, and motorized camera mounts for photography and videography. Actuators enable automated adjustments that enhance usability and versatility, catering to diverse consumer preferences and technological innovations.
