ARF10S Push-Pull Micro Industrial Linear Actuator Custom

ARF10S Push-Pull Micro Industrial Linear Actuator

Specifications:

Input voltage: 12VDC

Stroke length:25-150MM

Max. Load:60N

Max.speed:15mm/s

Duty cycle:10%, work 2 minutes and need to rest 18 minutes.

Operational temperature: -26℃ to 65℃

Build-in integral limit switch, not adjustable after leaving the factory.

Low noise design, dB≦50

IP65

Certificates: CE & RoHS

The ARF10S push-pull linear actuator achieves linear motion by driving the screw with an electric motor. The motor rotates the screw, and the nut moves along the screw. The slider or guide system inside the actuator is responsible for transmitting the linear motion to the load, thereby achieving linear motion. In industrial automation, it is used in robotic arms, conveying systems, assembly lines, etc; On medical equipment, used for surgical robots, medical beds, etc; Used in precision instruments such as microscopes, telescopes, etc; Used in aerospace for satellite antenna adjustment, spacecraft component positioning, etc. Regularly inspect the wear of the transmission mechanism and clean the guide rails and sliders to reduce friction and wear.

Product Details

Stroke

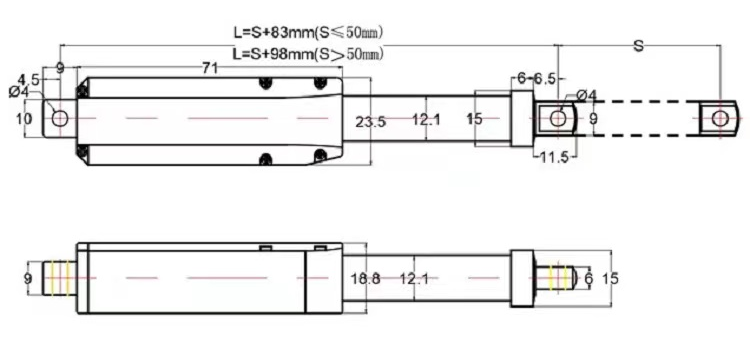

Install size

Load

Speed

25mm

108mm

60N

8mm/s

50mm

133mm

30N

15mm/s

75mm

173mm





100mm

198mm





150mm

248mm




Message us

About Us
Ningbo Alpha Automation Co., Ltd.
Ningbo Alpha Automation Co., Ltd. is an integrated China ARF10S Push-Pull Micro Industrial Linear Actuator Factory and Custom ARF10S Push-Pull Micro Industrial Linear Actuator Suppliers that specializes in the research, production, and marketing of Linear actuators, Control Systems, hand controllers, and wireless remote control TV lift sets.
Our company allocated a professional automatic production assembly line, consummate examine equipment and an experienced R&D team. Our products find good sales all over the world and won the trust and high opinion of our customers deeply, they are widely used in industry, office automation systems, dental chairs, massage chairs, medical beds, electric sofas, and many other fields.
Alpha strictly enforces the scientific production process and, a complete and advanced management system. For the increasing requirements from the world market, we continually expand our production, and business range and devote COMPREHENSIVE SOLUTION for you.
With expertise, a good quality system, competitive price, and reliable service, we could offer you a firm production base for your developing new market. We welcome all circles to review instruct and establish resplendence ardently. We are enthusiastically expecting to trade with you, develop mutual business, and create a wonderful future.
News
Message Feedback
Industry knowledge

Advanced Design and Construction of the ARF10S Push-Pull Micro Industrial Linear Actuator

The ARF10S Push-Pull Micro Industrial Linear Actuator sets a new standard in precision engineering and robust construction, tailored specifically for demanding industrial applications. At its foundation lies a meticulously engineered design that integrates advanced materials and manufacturing techniques, ensuring exceptional durability and operational reliability. The ARF10S is crafted from high-grade materials chosen for their durability, strength, and resistance to wear under heavy operational loads. Components such as the housing, shaft, and internal gears are precision-machined from aerospace-grade alloys or stainless steel, guaranteeing longevity and minimal maintenance requirements. This choice of materials not only enhances the actuator's lifespan but also contributes to its ability to withstand harsh environmental conditions, including temperature extremes and exposure to contaminants. Designed with space efficiency in mind, the ARF10S features a compact footprint without compromising on performance. Its ergonomic design facilitates easy integration into existing machinery and systems, making it an ideal choice for retrofitting or upgrading industrial equipment. The actuator's streamlined profile minimizes installation complexities and optimizes space utilization within manufacturing environments, enhancing overall operational efficiency. Central to the ARF10S's design is its precision-engineered components and assembly processes. Each actuator undergoes rigorous quality control measures to ensure dimensional accuracy and consistent performance across production batches. Precision machining techniques, such as CNC (Computer Numerical Control) milling and grinding, are employed to achieve tight tolerances critical for smooth operation and reliable motion control. Recognizing the diverse operational environments encountered in industrial settings, the ARF10S is equipped with a sealed construction. This feature not only protects internal components from dust, moisture, and debris but also enhances resistance to chemical exposure, ensuring uninterrupted performance in challenging conditions. Sealed bearings and gaskets prevent ingress of contaminants, maintaining the actuator's operational integrity over its service life.

Enhanced Safety Features of the ARF10S Push-Pull Micro Industrial Linear Actuator

Safety is paramount in industrial environments where precision machinery operates in close proximity to personnel and other equipment. The ARF10S Push-Pull Micro Industrial Linear Actuator is engineered with advanced safety features to ensure reliable operation while mitigating potential hazards effectively.
a)Integrated Overload Protection: One of the key safety features of the ARF10S is its integrated overload protection mechanism. Designed to prevent damage due to excessive loads or unexpected forces, this feature automatically detects and responds to overload conditions by temporarily halting operation or reducing torque output. By safeguarding against overexertion, it protects both the actuator and surrounding equipment from potential damage, thereby minimizing downtime and maintenance costs.
b)Emergency Stop Functionality: In critical situations requiring immediate cessation of motion, the ARF10S is equipped with an emergency stop function. This feature enables rapid deactivation of the actuator's operation with a single command, either through a dedicated switch or as part of an integrated control system. The emergency stop function ensures swift response times in emergencies, enhancing overall safety by preventing accidents and injury to personnel.
c)Positional Feedback and Limit Switches: To maintain precise control over movement and prevent unintended travel beyond set parameters, the ARF10S incorporates positional feedback sensors and limit switches. These components provide real-time feedback on the actuator's position, velocity, and acceleration, enabling accurate monitoring and control of its operational range. Limit switches act as mechanical stops, automatically halting motion when predetermined endpoints are reached, thereby preventing overtravel and potential collisions.
d)Ingress Protection and Environmental Resilience: In industrial environments prone to dust, moisture, or chemical exposure, the ARF10S's robust construction includes ingress protection measures. Sealed enclosures and IP-rated housing options shield internal components from environmental contaminants, ensuring sustained performance and reliability over extended periods. This environmental resilience not only enhances operational safety but also extends the actuator's service life in challenging operating conditions.
