ARF09 Ball Screw Industrial Heavy Duty Linear Actuator Custom

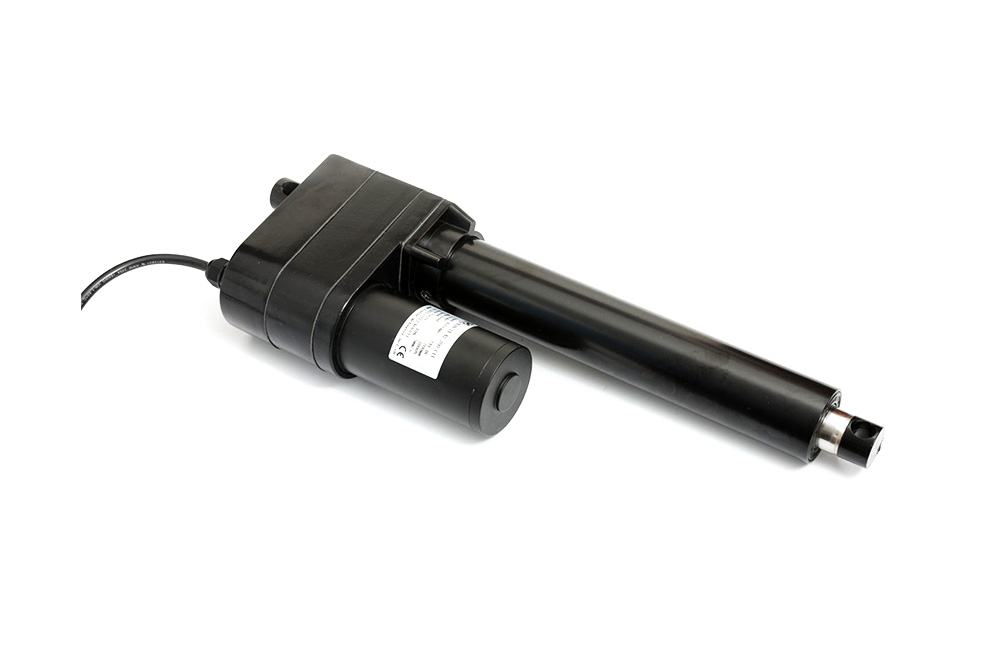

ARF09 Ball Screw Industrial Heavy Duty Linear Actuator

ARF09 Industrial Heavy Duty Linear Actuator

Specifications:

Input voltage: 12/24/36VDC

Max. Load : 7000N

Stroke: 50/100/150/200/250/300mm, can produce as your request.

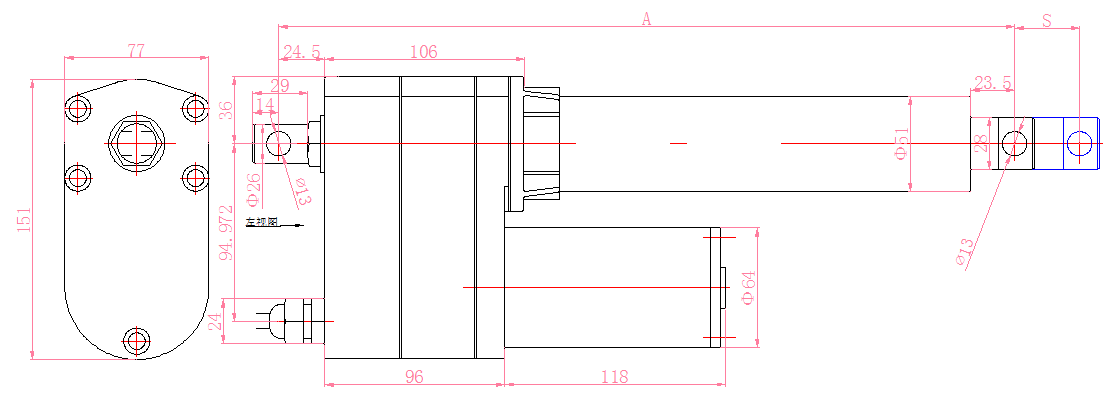

Mini. Install size: L= S + 250mm

Max. Speed : 60mm/s

Rated load speed: 5mm/s(7000N); 60mm/s(500N)

Temperature :-26 to 65

Protection class: IP65

Limit switch: inner

Potentiometer option



ARF09 ball screw industrial heavy duty linear actuator is a mechanical device used for precision control and high load transmission. It combines the advantages of ball screw and linear actuator, providing efficient and accurate linear motion. The design of ball screw allows it to withstand large axial loads, making it suitable for heavy-duty industrial applications. Ball screw achieves low friction loss through rolling friction of the ball, providing high-precision positioning control. Compared with traditional sliding screws, ball screw has higher transmission efficiency, reduces energy consumption, reduces wear through rolling contact, and has self-locking function to prevent slipping back when there is no power.

Product Details

Message us

About Us
Ningbo Alpha Automation Co., Ltd.
Ningbo Alpha Automation Co., Ltd. is an integrated China ARF09 Ball Screw Industrial Heavy Duty Linear Actuator Factory and Custom ARF09 Ball Screw Industrial Heavy Duty Linear Actuator Suppliers that specializes in the research, production, and marketing of Linear actuators, Control Systems, hand controllers, and wireless remote control TV lift sets.
Our company allocated a professional automatic production assembly line, consummate examine equipment and an experienced R&D team. Our products find good sales all over the world and won the trust and high opinion of our customers deeply, they are widely used in industry, office automation systems, dental chairs, massage chairs, medical beds, electric sofas, and many other fields.
Alpha strictly enforces the scientific production process and, a complete and advanced management system. For the increasing requirements from the world market, we continually expand our production, and business range and devote COMPREHENSIVE SOLUTION for you.
With expertise, a good quality system, competitive price, and reliable service, we could offer you a firm production base for your developing new market. We welcome all circles to review instruct and establish resplendence ardently. We are enthusiastically expecting to trade with you, develop mutual business, and create a wonderful future.
News
Message Feedback
Industry knowledge

How is the performance stability of the ARF09 ball screw industrial heavy-duty linear actuator under high load operation?

The ARF09 ball screw industrial heavy-duty linear actuator is designed and manufactured to provide excellent high load performance and long-term stability. As a manufacturer, we know that performance stability under high load conditions has extremely strict requirements on actuators, so we have taken comprehensive and in-depth measures in design, material selection, manufacturing processes and testing to ensure that ARF09 can perform under high load conditions. Excellent performance in load environments.

The core components of the ARF09 actuator are its high-strength ball screw and high-precision linear guide. The ball screw replaces traditional sliding friction with rolling friction, significantly reducing friction loss and improving transmission efficiency and load capacity. We selected high-strength steel and performed precision machining and heat treatment on the screw to improve its load-bearing capacity and fatigue resistance. The threads of the lead screw undergo strict machining precision control to ensure smooth operation and precise positioning under high load conditions.

The linear guide is another key component of the actuator that supports and guides the ball screw by providing stable guidance. We use high-strength alloy materials and undergo precision machining and heat treatment to ensure that they will not deform or wear under high loads. The guide rails are designed for even load distribution and resistance to lateral forces, ensuring high accuracy and stability over long periods of operation.

In order to further improve the stability of the ARF09 actuator, we adopted an optimized structural design. The actuator's shell is made of high-strength aluminum alloy material, which not only provides sufficient strength support but also reduces the overall weight of the device. The aluminum alloy has undergone anti-corrosion treatment and can withstand the impact of harsh environments on equipment. The internal structure has undergone finite element analysis and multiple simulation tests to ensure that it will not deform or fatigue under high load conditions.

During the manufacturing process, we strictly control the quality of every link to ensure that each ARF09 actuator meets the highest performance standards. All components undergo strict quality inspection, including material inspection, processing accuracy inspection and assembly quality inspection. Especially in the manufacturing process of ball screws and linear guides, we use high-precision processing equipment and conduct comprehensive performance tests on each component to ensure that it can withstand high loads and maintain stable operation.

In addition, we have designed multiple protection functions for the ARF09 actuator to prevent possible failures under high load conditions. The overload protection device can monitor the load condition in real time and automatically adjust or stop operation when the load exceeds the safe range to prevent equipment damage. The overcurrent protection function can detect current changes to prevent the motor from overheating or damage due to overload. We are also equipped with a high temperature alarm device on the actuator. When the operating temperature of the equipment exceeds the safe range, an alarm will automatically sound and measures will be taken to protect the equipment.

What are the maintenance and upkeep requirements for the ARF09 ball screw industrial heavy-duty linear actuator? How to extend its service life in actual use?

As a high-performance industrial equipment, the maintenance and upkeep of the ARF09 ball screw industrial heavy-duty linear actuator is crucial to extend its service life and ensure stability and performance. As a manufacturer, we provide a series of detailed maintenance and care guides to help users keep their equipment in top condition during actual use and extend its service life.

Regular inspection and cleaning are basic requirements for maintaining the ARF09 actuator. Because actuators are exposed to dust, dirt, and other contaminants during operation, these impurities may affect the operating performance of the actuator. Therefore, users should regularly check the external and internal components of the actuator to ensure that there are no foreign objects or dust accumulation. During the cleaning process, appropriate tools and cleaning agents should be used, and corrosive or overly strong cleaning agents should be avoided to avoid damaging the surface or internal structure of the actuator. Especially actuators used in dusty or humid environments should be cleaned more frequently to prevent the accumulation of contaminants from affecting equipment performance.

Lubrication maintenance is an important step to keep the ARF09 actuator running smoothly. Ball screws and linear guides require regular lubrication during long-term use to reduce friction and extend component life. We recommend using specified lubricating oil or grease, and regularly adding or replacing lubricants based on actual usage. During the lubrication process, attention should be paid to the quality and quantity of lubricating oil to avoid excessive or insufficient lubrication, which may affect the operating performance and life of the actuator.

Checking and adjusting tension is also an important part of maintaining the ARF09 actuator. The tension of the ball screw should be adjusted according to the specific load requirements to ensure its transmission effect and accuracy. During use, the screw may become loose or have insufficient tension, which requires timely adjustment and tightening. Users should regularly check the tightening status of the screw to ensure its stability and safety. For applications that require high precision and high loads, correct adjustment of tension is particularly important and can be measured and adjusted with dedicated inspection tools.

Regular inspection of the actuator's electrical system is also a key part of maintenance. The electrical system includes components such as motors, controllers, and cables. These components may suffer from problems such as poor contact and aging insulation during long-term use. Users should regularly check the electrical connection points to ensure that the connections are firm and avoid loosening or poor contact. The insulation layer of the cable should be kept intact to avoid short circuit or breakage of the cable due to external force or aging. Inspection and maintenance of the electrical system can effectively prevent electrical faults from affecting actuator performance.

In actual use, users should also pay attention to the working environment of the equipment. ARF09 actuators should be installed in a dry, clean environment and avoid prolonged exposure to moisture, corrosive or extreme temperatures. If the actuator needs to be used in a harsh environment, it is recommended to use a protective cover or other protective measures to reduce the impact of the environment on the equipment. Keeping the environment clean and suitable can significantly improve the service life and performance stability of the actuator.
