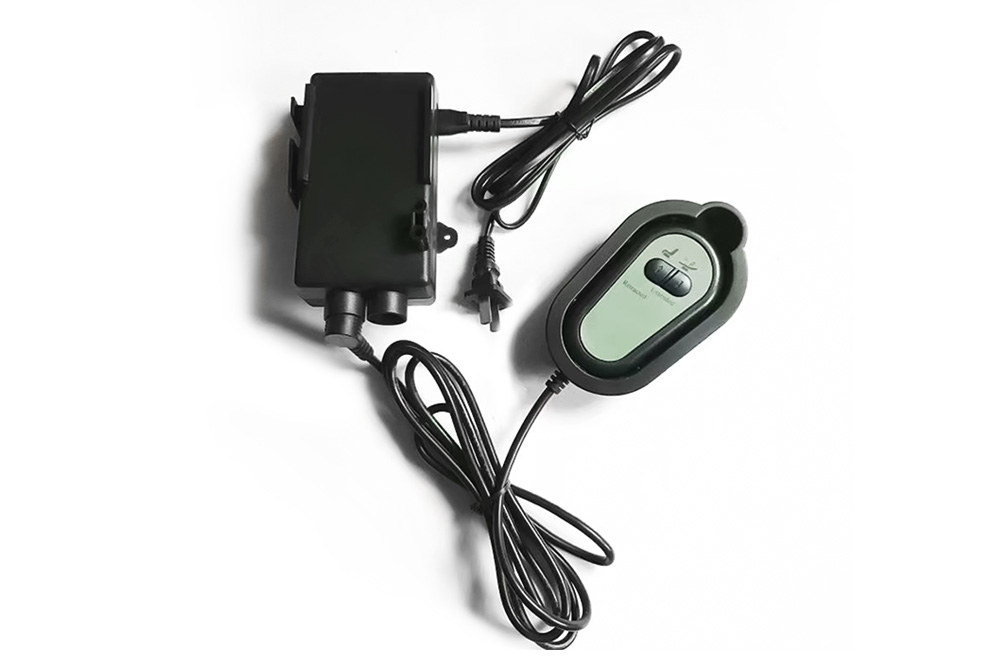

WD06 Dual Linear Actuator Controller

What are the core technologies of WD06 Dual Linear Actuator Controller?

In industrial automation, robotics, medical equipment and many precision control fields, linear actuators are key power conversion devices. Their performance and stability directly determine the operating efficiency and reliability of the entire system. WD06 Dual Linear Actuator Controller, as a controller designed for simultaneous control of two linear actuators, integrates a number of advanced technologies. Its excellent control accuracy, efficient response speed and powerful programmability make it stand out in many application scenarios.

1. High-precision PID control algorithm
The core of the WD06 controller lies in its built-in high-precision PID (proportional-integral-differential) control algorithm. As one of the most classic and widely used algorithms in the field of industrial control, the PID control algorithm achieves precise control of the controlled object (here, the linear actuator) by adjusting the three parameters of proportion, integration and differentiation.
Proportional control (P): Immediately generates control action based on the current error, enabling the system to respond quickly to deviations. In WD06, proportional control ensures that the linear actuator can quickly adjust its motion state after receiving the control signal.
Integral control (I): Eliminate steady-state errors by accumulating past errors and improve the control accuracy of the system. The role of integral control is particularly obvious in scenarios where long-term operation or high-precision positioning is required.
Differential control (D): Predict and adjust in advance according to the changing trend of the error to reduce the overshoot and oscillation of the system and improve the stability and response speed of the system.
The WD06 controller optimizes the parameter settings of the PID algorithm and combines the specific characteristics of the linear actuator to achieve precise control of the movement of the two actuators, whether in position, speed or acceleration, to achieve the expected control effect.

2. Dual-channel independent control technology
Another core technology of the WD06 controller is its dual-channel independent control technology, which allows the controller to control two linear actuators simultaneously and independently, greatly improving the flexibility and efficiency of the system.

Independent control logic: WD06 integrates two independent control channels, each of which has complete PID control logic and parameter settings to ensure that the two actuators can run according to the preset trajectory and speed respectively.
Synchronous and asynchronous control: According to application requirements, WD06 can realize synchronous control of two actuators (such as synchronous lifting, synchronous movement, etc.), or asynchronous control (such as one actuator is moving while the other actuator remains stationary or performs other actions).
Resource sharing and isolation: While controlling two channels independently, WD06 also ensures reasonable resource allocation and electrical isolation between the two control channels, avoiding mutual interference and fault propagation.

3. Advanced communication and programming interface
In order to meet the needs of different control systems, WD06 Dual Linear Actuator Controller provides a variety of advanced communication and programming interfaces.
Standard communication protocol: Supports multiple standard communication protocols such as RS-232, RS-485, CAN bus, etc., which is convenient for data exchange and command transmission with various control systems, PLC (programmable logic controller), host computer and other devices.
Programmability: Built-in powerful microprocessor or DSP (digital signal processor), supports user-defined control programs. Users can write control logic through programming software according to actual needs to implement complex motion control strategies.
Remote monitoring and debugging: Some high-end models of WD06 also support remote monitoring and debugging functions. Users can remotely access the controller through the network to view the operating status, adjust control parameters, and perform fault diagnosis and repair in real time.
4. Safety protection and fault diagnosis
In industrial applications, the safety and reliability of equipment are crucial. The WD06 Dual Linear Actuator Controller fully considers this in the design and manufacturing process, and has built-in multiple safety protection and fault diagnosis mechanisms.
Overload protection: When the linear actuator is subjected to excessive load, the controller will automatically cut off the power supply or reduce the output power to prevent equipment damage.
Short circuit protection: When a short circuit occurs in the circuit, the controller can quickly cut off the power supply to protect the circuit and equipment safety.
Overtemperature protection: The built-in temperature sensor monitors the temperature of the controller and linear actuator in real time. Once the set threshold is exceeded, cooling measures or shutdown protection will be automatically taken.
Fault diagnosis and alarm: The operating status and fault information of the equipment are displayed in real time through indicator lights, display screens or communication interfaces, which is convenient for users to quickly locate problems and handle them.
