WD07 Linear Actuator Speed Controller Custom

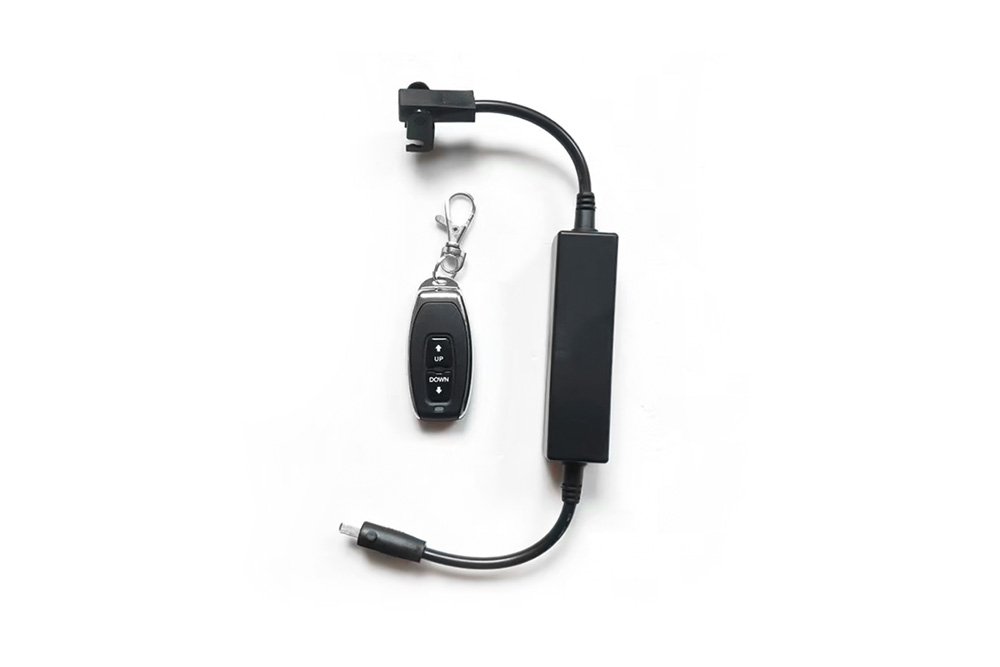

WD07 Linear Actuator Speed Controller

The WD07 linear actuator speed controller is an intelligent control device designed for the field of industrial automation, with many unique features and advantages.
The controller uses an advanced PID control algorithm, which can accurately adjust the speed of the actuator according to the real-time feedback signal. The PID control algorithm is a classic control method that achieves fast response and stable control performance by continuously adjusting the three parameters of proportion, integration and differentiation. In a complex working environment, the WD07 controller can quickly adjust the actuator speed according to external instructions to ensure stable operation of the equipment under various working conditions.
In order to achieve precise speed control, the WD07 controller is equipped with high-precision sensors to monitor the actuator motion state in real time and feed back data to the controller. These sensors have high resolution and high sensitivity, and can accurately detect parameters such as actuator position, speed and acceleration. The sensor works with the controller to provide the controller with accurate feedback signals to achieve precise speed regulation.
In addition, the WD07 controller supports multiple control modes, and users can choose the appropriate method according to their needs. In addition to the speed control mode, it also provides multiple modes such as position control and force control to meet the control needs of different application scenarios. This flexible control mode design makes the WD07 controller more suitable for various industrial automation applications and meet the needs of different users.

Product Details

Message us

About Us
Ningbo Alpha Automation Co., Ltd.
Ningbo Alpha Automation Co., Ltd. is an integrated China WD07 Linear Actuator Speed Controller Factory and Custom WD07 Linear Actuator Speed Controller Suppliers that specializes in the research, production, and marketing of Linear actuators, Control Systems, hand controllers, and wireless remote control TV lift sets.
Our company allocated a professional automatic production assembly line, consummate examine equipment and an experienced R&D team. Our products find good sales all over the world and won the trust and high opinion of our customers deeply, they are widely used in industry, office automation systems, dental chairs, massage chairs, medical beds, electric sofas, and many other fields.
Alpha strictly enforces the scientific production process and, a complete and advanced management system. For the increasing requirements from the world market, we continually expand our production, and business range and devote COMPREHENSIVE SOLUTION for you.
With expertise, a good quality system, competitive price, and reliable service, we could offer you a firm production base for your developing new market. We welcome all circles to review instruct and establish resplendence ardently. We are enthusiastically expecting to trade with you, develop mutual business, and create a wonderful future.
News
Message Feedback
Industry knowledge

What is the PID control algorithm used by WD07 Linear Actuator Speed ​​Controller?

In modern industrial automation and robotics, linear actuators are key driving components, and their speed control accuracy and stability directly affect the performance of the entire system. As a device specially designed to control the speed of linear actuators, one of the core technologies of WD07 Linear Actuator Speed ​​Controller is the use of PID (proportional-integral-differential) control algorithm. PID control algorithm is a widely used feedback control algorithm. It adjusts the output of the system by combining three control links: proportional, integral and derivative, so that the actual output value is as close to the desired reference value as possible. The output of the PID controller is a linear combination of the outputs of these three links.

1. Application of PID control algorithm in WD07 Linear Actuator Speed ​​Controller
Proportional control: Proportional control is the most basic part of PID control, which controls the output to be proportional to the error. In the WD07 Linear Actuator Speed ​​Controller, when the actual speed of the linear actuator deviates from the target speed, the proportional control immediately generates a control signal proportional to the size of the deviation to quickly adjust the actuator speed. However, pure proportional control cannot eliminate steady-state errors, that is, small deviations that still exist after the system reaches a steady state.
Integral control: Integral control eliminates steady-state errors by accumulating past errors. In the WD07 Linear Actuator Speed ​​Controller, the integral control link integrates the speed deviation and uses the integral result as part of the control output. In this way, even if the system has a small steady-state error, the integral control gradually accumulates and generates a control signal sufficient to eliminate the error. However, integral control may cause the system to respond more slowly and may increase overshoot.
Derivative control: Derivative control predicts future errors based on the rate of change of the error and adjusts the control output accordingly. In the WD07 Linear Actuator Speed ​​Controller, the derivative control link predicts future speed changes by calculating the rate of change of the speed deviation and adjusts the control signal in advance to speed up the system response, reduce overshoot, and increase the stability of the system. Differential control is very sensitive to noise because noise often causes sudden changes in error, which may be mistaken for the rate of change of error.

2. Implementation and adjustment of PID control algorithm
In WD07 Linear Actuator Speed ​​Controller, the implementation of PID control algorithm usually involves the following steps.
Determine system model and parameters: First, it is necessary to determine its mathematical model and related parameters, such as proportional coefficient (K_p), integral time constant (T_i), differential time constant (T_d), etc., according to the physical characteristics and working environment of the linear actuator.
Write PID control code: Write the code of PID control algorithm in the controller software to realize the calculation of proportional, integral and differential links and the output of control signal.
Parameter adjustment and optimization: Parameter adjustment of PID controller is the key to ensure system performance. It is usually necessary to find the best parameter combination through experimentation and trial and error to achieve stable, fast and accurate control of the system. More advanced parameter optimization methods can also be used, such as genetic algorithm, particle swarm optimization, etc.
Real-time application and monitoring: The output signal of the PID controller is applied to the linear actuator in real time, and the actual speed of the actuator is monitored by the sensor and fed back to the controller to form a closed-loop control system. At the same time, it is necessary to monitor the operating status and performance indicators of the system in real time to detect and solve problems in a timely manner.

The PID control algorithm used by the WD07 Linear Actuator Speed ​​Controller is an efficient, stable and widely used feedback control algorithm. Through the organic combination of the three links of proportion, integration and differentiation, the PID control algorithm can achieve precise control of the speed of the linear actuator and improve the stability and accuracy of the system. In practical applications, it is necessary to select appropriate PID parameters and optimize them according to the specific conditions and requirements of the system to achieve the best control effect.
