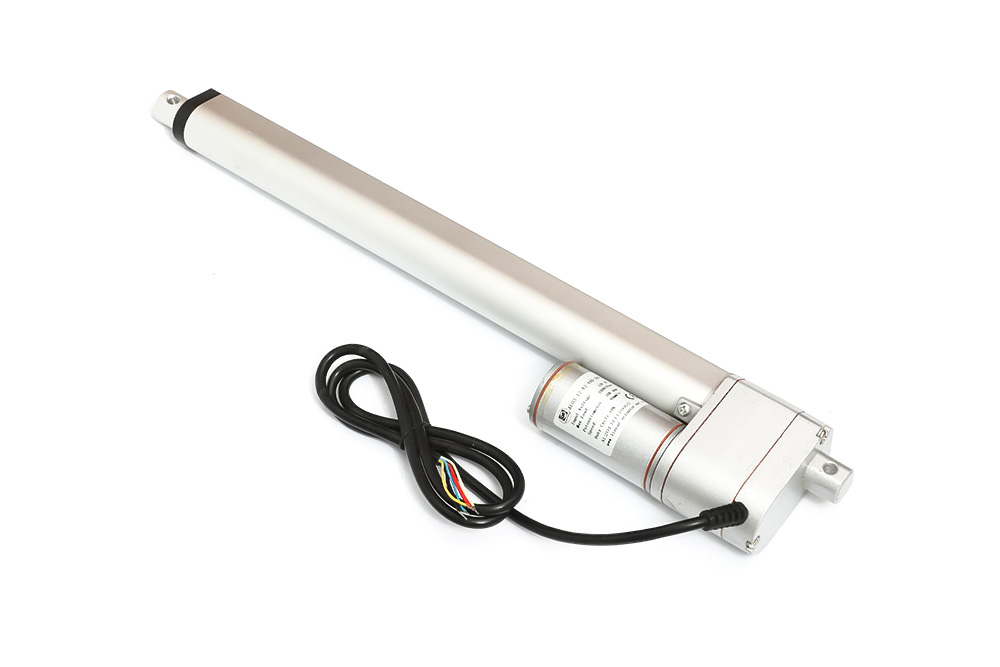

ARF03p Mini Linear Actuator With Potentiometer
Specifications:
Input voltage: 12VDC or 24VDC

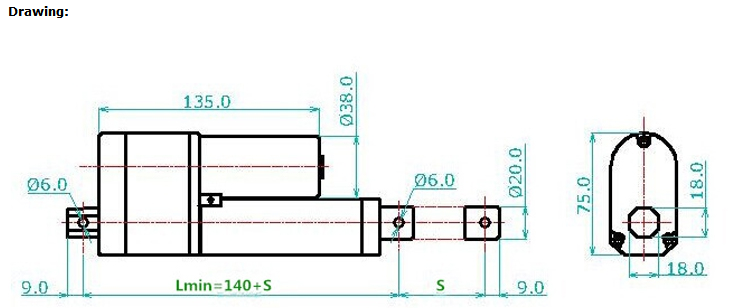

Stroke length:50,100,150,200,250,300mm, can produce as your request.
Max. Load:900N
Max.speed:40mm/s

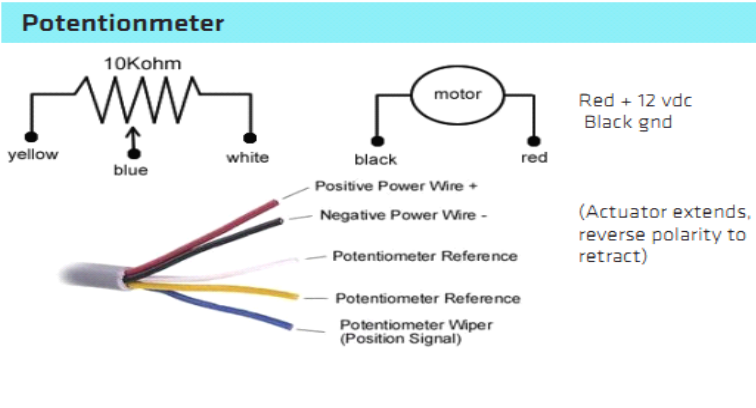

Potentiometer:10Kohm
Screw: ACME screw
Duty cycle:10%, work 2 minutes need to rest 18minutes.
Operational temperature: -26℃ to 65℃
IP54
Metal gears
Certificates: CE & RoHS
The ARF03p High Speed Mini Linear Actuator With Potentiometer provides efficient and precise linear motion control. Its core functions include high-speed movement, precise positioning, compact design and high reliability. Compared with conventional Linear Actuators, the miniature Linear Actuator has significant advantages in its compactness. First, it improves space utilization efficiency. Due to its compact design, ARF03p can be installed and operated in a small space, making it suitable for space-constrained application scenarios. Second, its strong integration and compact size make ARF03p easy to integrate with other mechanical and electronic systems. It is suitable for use in a variety of complex automation systems, simplifying the design and installation process and improving system integration. The most important thing is that it has low energy consumption. Its small size means that the required driving power is relatively low, which helps to reduce energy consumption, improve the energy efficiency of the system, and meets the requirements of green environmental protection.
|
Type
|
Load
|
Noload speed
|
12V Current |
24V Current |
|
A
|
900N
|
5
|
3 |
1.5 |
|
B
|
750N
|
10
|
3.1 |
1.51 |
|
C
|
500N
|
20
|
3.14 |
1.57 |
|
D
|
300N
|
30
|
3.16 |
1.58 |
|
E
|
200N
|
40
|
3.02 |
1.56 |
1. Optimized motor and drive systemThe ARF05 12V lifting column pays great attention to noise control in the design of the motor and drive system. The motors used are low-noise and high-efficiency mot...
READ MORE1. High Precision and High Load CapacityThe design of the ARF10S push-pull linear actuator fully considers the needs in high-load and high-precision applications. The maximum load reaches 60N, which i...
READ MORE1. Wired Connection for Stability and ReliabilityOne of the main advantages of the HC08 Wired Instant Remote Control Handset is its wired connection. Unlike wireless remote controls that can be subjec...
READ MOREARF03p high speed mini linear actuator with potentiometer is a highly anticipated product, known for its excellent performance and advanced design.
This actuator has the characteristics of high-speed movement, with a maximum speed of up to 100mm/s, and can respond quickly to improve work efficiency. ARF03p actuator is an ideal choice for positioning, clamping, pushing and pulling operations on automated production lines.
Precise positioning is another feature of ARF03p, with a resolution of 0.01mm, achieving very precise linear positioning control. In applications that require high-precision position control, such as robot joint control, lifting and tilting of medical equipment, ARF03p actuator performs well.
In addition, ARF03p has a built-in potentiometer, which can monitor its own position in real time, realize closed-loop control, improve system stability and accuracy, and is suitable for various complex working environments.
Lightweight and portable is one of the characteristics of ARF03p. The mini design and small size make it suitable for application scenarios with limited space. In the fields of robotics, medical equipment, and aerospace, ARF03p actuators can provide convenient solutions.
ARF03p high-speed mini linear actuator with potentiometer is highly reliable, made of high-quality materials and advanced technology, stable and reliable, and not easy to damage after long-term use. In applications that require high reliability and durability of actuators, ARF03p actuators are able to meet various challenges.
ARF03p high-speed mini linear actuator with potentiometer is a product with excellent performance and multifunctional design, which is widely used in various industries.
In the field of automation equipment, ARF03p actuator plays an important role. It can be used for positioning, clamping, pushing and pulling operations on automated production lines to achieve efficient automation of the production process. Its high-speed movement and precise positioning characteristics make it an indispensable key component in automation equipment.
The field of robotic arms is also a wide application field of ARF03p actuators. In the joint control of robotic arms such as robots and collaborative robots, ARF03p actuators provide fast and precise linear motion to help robotic arms complete various complex movements and tasks. Its built-in potentiometer function can monitor the position of the robot arm in real time, improving the stability and accuracy of the system.
In addition, the ARF03p high-speed mini linear actuator with potentiometer is also widely used in the field of medical equipment. In medical beds, operating tables and other equipment, the ARF03p actuator can be used for lifting, tilting and other functional controls to assist medical staff in better patient care and surgical operations. Its high-speed movement and precise positioning capabilities make it an indispensable and important part of medical equipment.
In the field of aerospace, the ARF03p actuator also plays an important role. In aircraft, satellites and other equipment, the ARF03p actuator can be used for functions such as servo control and door switches. Its high reliability and stability enable it to operate normally in harsh aerospace environments, ensuring the stable operation of the equipment. The ARF03p high-speed mini linear actuator with potentiometer is one of the indispensable and important equipment in various industries.
